J.I. Case 2394 - transmission

J.I. Case 2394 tractor photo
1984 - 1984   94 Series
Row-Crop tractor
Next model:CaseIH 2394
Series next:J.I. Case 2594
Series back:J.I. Case 2294
more J.I. Case 2394 specifications...

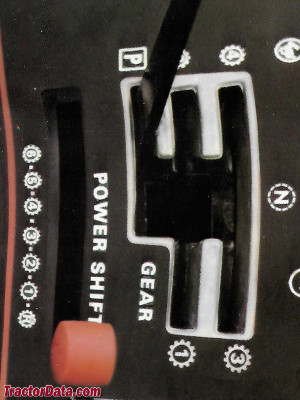

Transmission:

Type:three-speed power shift
Gears:12 forward and 3 reverse
Oil capacity:128 qts [121.1 L]
Three power-shift gears (1-3), plus reverse, in four ranges (1-4). Reverse does not function in fourth range.
Speeds:With 18.4x38 rear tires.

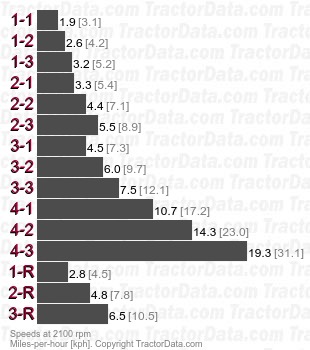

2394  three-speed power shift speeds

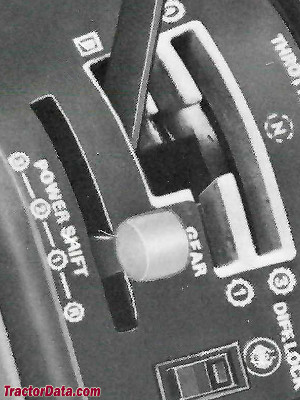

Transmission:

Type:four-speed power shift
Gears:24 forward and 3 reverse
Clutch:hydraulic wet disc
Oil capacity:128 qts [121.1 L]
Six power shift gears (1-6), plus reverse, in four ranges (1-4). Reverse does not work in fourth range.
Speeds:With 18.4x38 rear tires.
2394  four-speed power shift speeds
