Tractors > J.I. Case > 2394

J.I. Case 2394 - tests

J.I. Case 2394 tractor photo
1984 - 1984   94 Series
Row-Crop tractor
Next model:CaseIH 2394
Series next:J.I. Case 2594
Series back:J.I. Case 2294
more J.I. Case 2394 specifications...






Nebraska Tractor Test 1527:

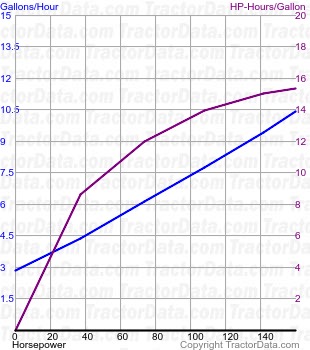

2394 fuel use from test 1527
Test Date:June 7 - 23, 1984
Type:Diesel 24-speed 2WD
PTO power (rated engine speed):162.15 hp [120.9 kW]
PTO fuel use (engine speed):10.5 gal/hour [39.7 l/hour]
Drawbar power (max):137.78 hp [102.7 kW]
Drawbar fuel use (max):10.3 gal/hour [39.0 l/hour]
Drawbar pull (max):15497 lbs [7029 kg]
Max pull gear:2-2
Test report:PDF file
