    J.I. Case 2294 - transmission




    J.I. Case 2294 tractor photo
    Model:2294
    Years:1984 - 1988
    Tractor type:Farm/Agricultural tractor
    Original price:$47,000 (1987)
    more J.I. Case 2294 specifications...


    Transmission:

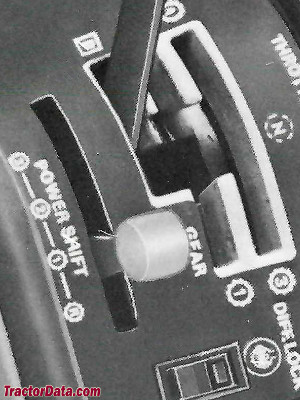

    :Power Shift
    Type:-unknown-
    Forward:12
    Reverse:3
    Oil capacity:100 qts [94.6 L]
    Comments:Four ranges and three power shifts (clutchless on-the-move shifting) in each range.

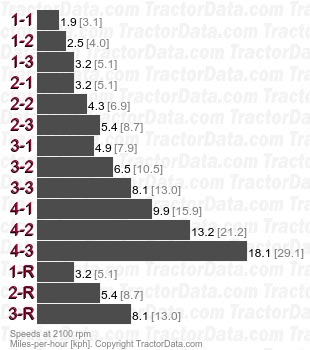

    Speeds:With 18.4x38 rear tires.

    Gear2100 rpm
    1-11.9mph [3.1kph]
    1-22.5mph [4.0kph]
    1-33.2mph [5.1kph]
    2-13.2mph [5.1kph]
    2-24.3mph [6.9kph]
    2-35.4mph [8.7kph]
    3-14.9mph [7.9kph]
    3-26.5mph [10.5kph]
    3-38.1mph [13.0kph]
    4-19.9mph [15.9kph]
    4-213.2mph [21.2kph]
    4-318.1mph [29.1kph]
    1-R3.2mph [5.1kph]
    2-R5.4mph [8.7kph]
    3-R8.1mph [13.0kph]
