Fendt 206 Transmission


Fendt 206 tractor photo
2003 - 2009
Farmer 200 Series
Utility tractor
Farmer 260S
Series:206207
Transmissions overview
21-speed synchromesh
21-speed shuttle
Transmission
Type:synchromesh
Gears:21 forward and 6 reverse
Three gears (1-3), plus reverse (R), in two ranges (low/high) with three-speed splitter (L/M/S). Additional three overdrive gears (25/30/40).
Transmission
Type:shuttle
Gears:21 forward and reverse
Three gears (1-3) in two ranges (low/high) with three-speed splitter (L/M/S). Additional three overdrive gears (25/30/40) and mechanical shuttle.

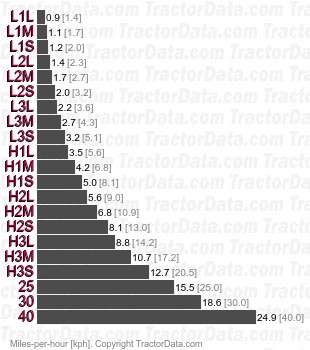

Speeds
206  shuttle speeds
