Tractors > CaseIH > Maxxum 120

CaseIH Maxxum 120 - tests

CaseIH Maxxum 120 tractor photo
2007 - 2017   Maxxum Series
Model years
Row-Crop tractor
Series next:CaseIH Maxxum 125
Series back:CaseIH Maxxum 115
more CaseIH Maxxum 120 specifications...


OCED Tractor Test 2482:

Nebraska summary:678

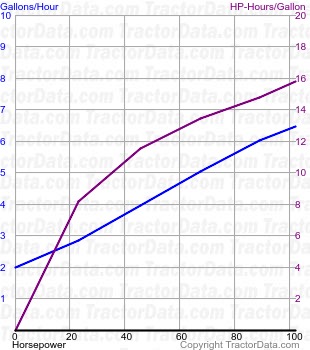

Maxxum 120 fuel use from test 678
Test Date:December 2007 - June 2008,
Type:Diesel 16-speed 4WD
PTO power (max):117.9 hp [87.9 kW]
PTO fuel use (max):6.8 gal/hour [25.7 l/hour]
PTO power (rated engine speed):101.9 hp [76.0 kW]
PTO fuel use (engine speed):6.5 gal/hour [24.6 l/hour]
PTO power (rated PTO speed):107.0 hp [79.8 kW]
PTO fuel use (PTO speed):6.6 gal/hour [25.0 l/hour]
Drawbar power (max):81.0 hp [60.4 kW]
Drawbar fuel use (max):6.5 gal/hour [24.6 l/hour]
Drawbar pull (max):12,525 lbs [5681 kg]
Max pull gear:1
Test report:PDF file
