Tractors > CaseIH > Maxxum 110

CaseIH Maxxum 110 - tests

CaseIH Maxxum 110 tractor photo
2007 - 2017   Maxxum Series
Model years
Row-Crop tractor
Series next:CaseIH Maxxum 115
more CaseIH Maxxum 110 specifications...






OCED Tractor Test 2445:

Nebraska summary:663

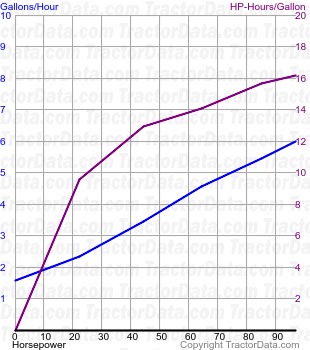

Maxxum 110 fuel use from test 663
Test Date:October 2007 - January 2008,
Type:Diesel 12-speed 4WD
PTO power (max):97.0 hp [72.3 kW]
PTO fuel use (max):5.8 gal/hour [22.0 l/hour]
PTO power (rated engine speed):96.6 hp [72.0 kW]
PTO fuel use (engine speed):6.0 gal/hour [22.7 l/hour]
PTO power (rated PTO speed):96.4 hp [71.9 kW]
PTO fuel use (PTO speed):5.8 gal/hour [22.0 l/hour]
Drawbar power (max):82.3 hp [61.4 kW]
Drawbar fuel use (max):6.0 gal/hour [22.7 l/hour]
Drawbar pull (max):9,195 lbs [4170 kg]
Max pull gear:I-1
Test report:PDF file


OCED Tractor Test 2444:

Nebraska summary:677

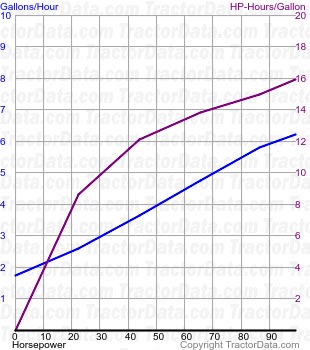

Maxxum 110 fuel use from test 677
Test Date:January 2008 - March 2008,
Type:PRO diesel 16-speed 4WD
PTO power (max):108.5 hp [80.9 kW]
PTO fuel use (max):6.1 gal/hour [23.1 l/hour]
PTO power (rated engine speed):99.0 hp [73.8 kW]
PTO fuel use (engine speed):6.2 gal/hour [23.5 l/hour]
PTO power (rated PTO speed):100.2 hp [74.7 kW]
PTO fuel use (PTO speed):6.1 gal/hour [23.1 l/hour]
Drawbar power (max):78.7 hp [58.7 kW]
Drawbar fuel use (max):6.2 gal/hour [23.5 l/hour]
Drawbar pull (max):11,210 lbs [5084 kg]
Max pull gear:4
Test report:PDF file
