Tractors > CaseIH > STX380

CaseIH STX380 - transmission

CaseIH STX380 tractor photo
2006 - 2007   Steiger STX Series
Four-wheel Drive (4WD) tractor
Previous model:CaseIH STX375
Next model:CaseIH Steiger 380
CaseIH Steiger 430
Series next:CaseIH STX430
Series back:CaseIH STX330
more CaseIH STX380 specifications...






Transmission:

Type:full power shift
Gears:16 forward and 2 reverse
Speeds:

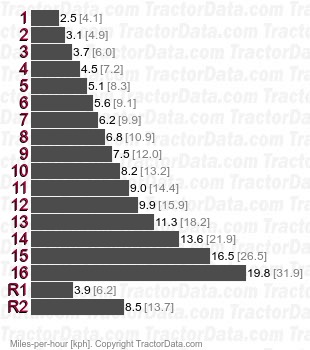

STX380  full power shift speeds


Transmission:

Transmission:Synchroshift
Type:fully synchronized
Gears:24 forward and 6 reverse
Clutch:wet disc
