Tractors > CaseIH > Steiger 435QT Quadtrac

CaseIH Steiger 435QT Quadtrac - engine

CaseIH Steiger 435QT Quadtrac tractor photo
2008 - 2010
Next model:CaseIH Steiger 450 Quadtrac
Series next:CaseIH Steiger 485QT
Series back:CaseIH Steiger 385QT
more CaseIH Steiger 435QT Quadtrac specifications...






Engine Detail:

 Iveco
 turbocharged diesel
 6-cylinder 24-valve
 liquid-cooled
 787 ci [12.9 L]
Bore/Stroke:5.314x5.906 inches [135 x 150 mm]
Emissions:Tier 3
Power:435 hp [324.4 kW]
Maximum Power:478 hp [356.4 kW]
Air cleaner:dual paper elements
Compression:16.5:1
Rated RPM:2000
Starter volts:24

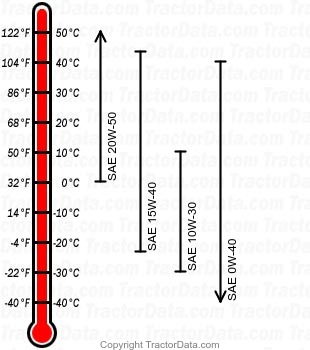

Oil capacity:32.8 qts [31.0 L]
