Ford 7710 Tests


Ford 7710 tractor photo
1982 - 1990
10 Series
Row-Crop tractor
Series map:
7610
7710
97.0hp
97.0hp
Tractor Tests
NTTL 1432: diesel 16/4 4WD
NTTL 1433: diesel 16/8 powershift 2WD
Nebraska Tractor Test 1432

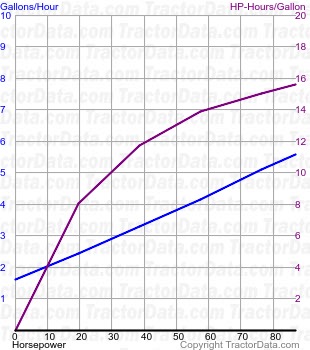

7710 fuel use from test 1432
Nebraska Tractor Test 1432
Diesel 16/4 4WD
April 14 - May 10, 1982
Link: Nebraska Tractor Test 1432 file
PTO performance
Power at rated engine speed86.95 hp
64.8 kW
Fuel use5.6 gal/hour
21.2 l/hour
Power at rated PTO speed86.79 hp
64.7 kW
Fuel use1.0 gal/hour
3.8 l/hour
Drawbar performance
Max power74.08 hp
55.2 kW
Fuel use5.5 gal/hour
20.8 l/hour
Gear 6L used for power test.
Max pull8,804 lbs
3993 kg
Gear 3L used for pull test.
Nebraska Tractor Test 1433
7710 fuel use from test 1433
Nebraska Tractor Test 1433
Diesel 16/8 powershift 2WD
April 2 - May 3, 1982
Link: Nebraska Tractor Test 1433 file
PTO performance
Power at rated engine speed86.62 hp
64.6 kW
Fuel use5.5 gal/hour
20.8 l/hour
Power at rated PTO speed86.55 hp
64.5 kW
Fuel use5.5 gal/hour
20.8 l/hour
Drawbar performance
Max power72.33 hp
53.9 kW
Fuel use5.3 gal/hour
20.1 l/hour
Gear 6L used for power test.
Max pull8,638 lbs
3918 kg
Gear 3L used for pull test.
