Tractors > Challenger > MT225

Challenger MT225

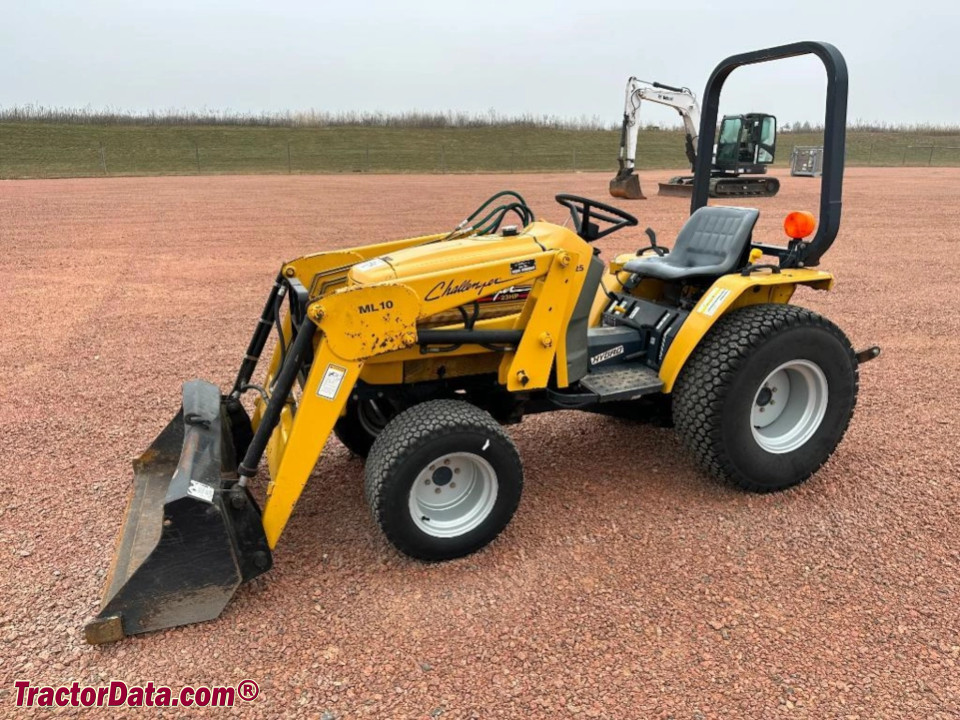

Challenger MT225 tractor photo
2003 - 2005   MT200 Series
Compact Utility tractor
Next model:Challenger MT225B
Series next:Challenger MT255






Production:

Distributor:Challenger (a part of AGCO)
Manufacturer:Iseki
Factory:Matsuyama, Japan


Challenger MT225 Engine:

   Iseki 1.1L 3-cyl diesel
full engine details ...


Capacity:



3-Point Hitch:

Rear Type:I
Control:position control
Rear lift (at ends):1,210 lbs [548 kg]
Rear lift (at 24"/610mm):694 lbs [314 kg]


Power Take-off (PTO):

Rear PTO:independent
Rear RPM:540 (1.375)
Mid PTO:independent
Mid RPM:2000


Dimensions & Tires:

Wheelbase:59.5 inches [151 cm]
Weight:1,672 lbs [758 kg]
Front tire:5.00-12
Rear tire:9.5-16
full dimensions and tires ...


Challenger MT225 attachments:

 mowing deck
 front-end loader
all MT225 attachments ...


MT225 Serial Numbers:


how to read serial numbers...



Challenger MT225 Power:

Engine (gross):23.3 hp [17.4 kW]
PTO (claimed):19 hp [14.2 kW]


Mechanical:

Chassis:4x4 MFWD 4WD
Differential lock:mechanical rear
Steering:power
Brakes:dry shoe
Cab:Two-post fixed ROPS.


Hydraulics:

Type:open center
Pressure:1930 psi [133.1 bar]
Pump flow:5.4 gpm [20.4 lpm]
Total flow:7.9 gpm [29.9 lpm]
Steering flow:2.5 gpm [9.5 lpm]


Electrical:

Ground:negative
Charging system:alternator


Battery:

Number:1
Volts:12
