John Deere 5625 - transmission

John Deere 5625 tractor photo
2007 - 2008   5025 Series
Utility tractor
Next model:John Deere 5105M
Series back:John Deere 5525
more John Deere 5625 specifications...






Transmission:

Transmission:John Deere SyncShuttle
Type:partially synchronized
Gears:9 forward and 3 reverse
Clutch:dry disc
Oil capacity:41.2 qts [39.0 L]
Oil type:
122o↔-10oF [50o↔-23oC]   : Hy-Gard
86o↔-40oF [30o↔-40oC]   : Low-Viscosity Hy-Gard

Three gears (1-3) plus reverse in three ranges (A-C). Gears may be shifted on the move using the clutch. Tractor must be stopped, and clutch used, to shift ranges.
Speeds:With 16.9-30 rear tires.

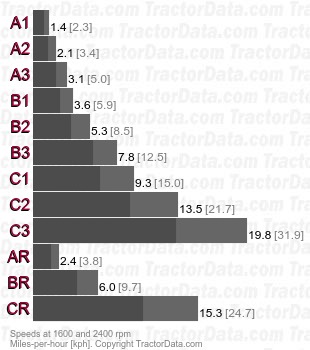

5625 SyncShuttle partially synchronized speeds


Transmission:

Transmission:John Deere PowrReverser
Type:power shuttle
Gears:12 forward and reverse
Clutch:wet disc
Oil capacity:46 qts [43.5 L]
Oil type:
122o↔-10oF [50o↔-23oC]   : Hy-Gard
86o↔-40oF [30o↔-40oC]   : Low-Viscosity Hy-Gard

Four gears (1-4) in three ranges (A-C) with reverser lever. Direction may be changed without using the clutch. Gear shifts are synchronized using the clutch. Tractor must be stopped to shift ranges.
Speeds:With 16.9-30 rear tires.

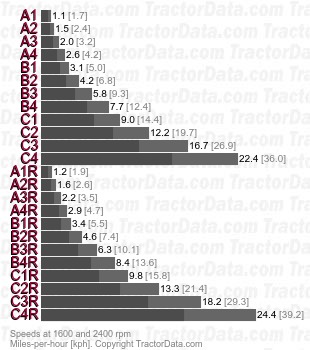

5625 PowrReverser power shuttle speeds


Transmission:

Transmission:John Deere PowrReverser Hi/Lo
Type:partial power shift
Gears:24 forward and reverse
Oil capacity:48 qts [45.4 L]
Adds a push-button high-low power shift to the PowrReverser transmission.
Speeds:With 16.90-30 rear tires. Reverse speeds are 10% faster than forward speeds.

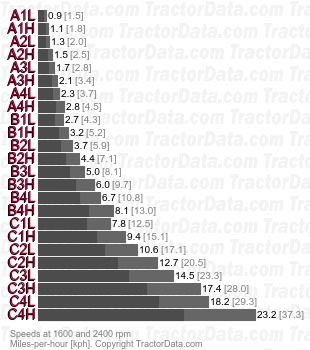

5625 PowrReverser Hi/Lo partial power shift speeds
