Versatile 846 Transmission


Versatile 846 tractor photo
1988 - 1993
6 Series
Four-wheel Drive (4WD) tractor
Transmissions overview
12-speed constant mesh
15-speed partially synchronized
Transmission
Type:constant mesh
Gears:12 forward and 4 reverse
Clutch:356mm dry disc
Oil capacity:21.5 qts
20.3 L
Speeds
846  constant mesh speeds
Transmission
Transmission:Versatile Three-by-Five
Type:partially synchronized
Gears:15 forward and 5 reverse
Clutch:228mm hydraulic wet disc
Five synchronized gears in three ranges, plus reverse range.
Speeds

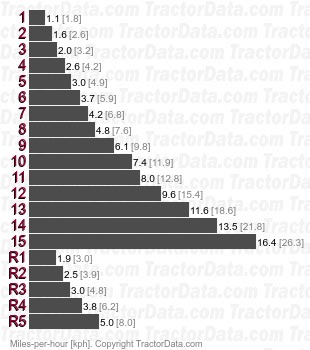

846 Three-by-Five partially synchronized speeds
