John Deere 9630T Engine


John Deere 9630T tractor photo
2007 - 2011
9030 Series
Agricultural Crawler tractor
Series map:
9530T
9630T
475.0hp
530.0hp
Engine Detail
John Deere PowerTech Plus
turbocharged aftercooled diesel
6-cylinder
liquid-cooled inline
Displacement823.8 ci
13.5 L
Bore/Stroke5.197x6.496 inches
132 x 165 mm
Power530 hp
395.2 kW
Rated Power (EC 97/98)543 hp
404.9 kW
Fuel systemelectronic injection
Cooling systemvariable ratio fan
Air cleanerdual paper elements
Compression16:1
Rated RPM2100
Starter volts12
Coolant capacity56 qts
53.0 L
Engine Oil

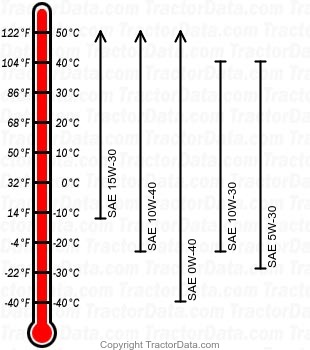

9630T diesel engine oil chart
Oil capacity63.2 qts
59.8 L
John Deere 9630T Engine

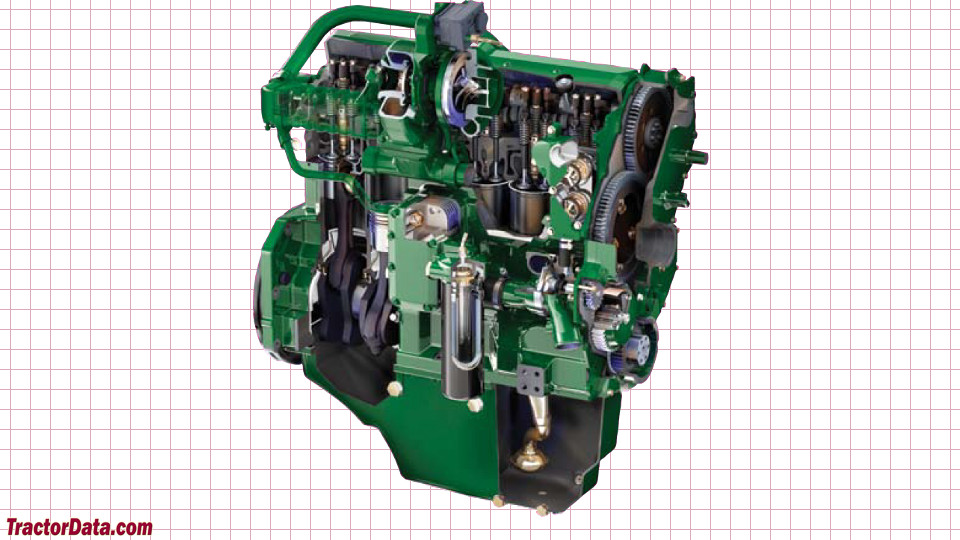

John Deere 9630T engine image
