John Deere 9430 Tests


John Deere 9430 tractor photo
2007 - 2011
9030 Series
Four-wheel Drive (4WD) tractor
9420
Series:933094309530
9460R
OCED Tractor Test 1942

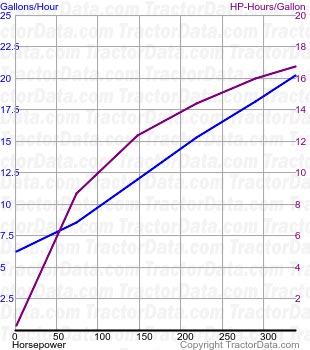

9430 fuel use from test 618
OCED Tractor Test 1942
Diesel 18-speed 4WD
October 10 - November 5, 2008
Link: OCED Tractor Test 1942 file
PTO performance
Max power:383.62 hp
286.1 kW
Fuel use:22.2 gal/hour
84.0 l/hour
Power at rated engine speed:337.90 hp
252.0 kW
Fuel use:20.2 gal/hour
76.5 l/hour
Power at rated PTO speed:378.62 hp
282.3 kW
Fuel use:22.0 gal/hour
83.3 l/hour
Drawbar performance
Max power:343.05 hp
255.8 kW
Fuel use:22.0 gal/hour
83.3 l/hour
Gear 8 used for power test.
Max pull:44,141 lbs
20022 kg
Gear 1 used for pull test.
