John Deere 420C Tests


John Deere 420C tractor photo
1956 - 1958
Agricultural Crawler tractor
Series map:
420C
32.0hp*
*Estimated engine power for comparison only.
Nebraska Tractor Test 601

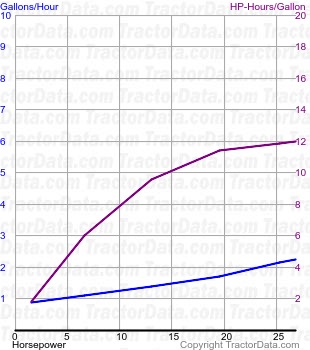

420C fuel use from test 601
Nebraska Tractor Test 601
Gasoline 5-speed crawler
October 15 - 25, 1956
Link: Nebraska Tractor Test 601 file
Belt power (max)28.76 hp
21.4 kW
Belt fuel use (max)2.6 gal/hour
9.8 l/hour
Drawbar performance
Max power23.53 hp
17.5 kW
Gear 3 used for power test.
Max pull4,862 lbs
2205 kg
Gear 1 used for pull test.
