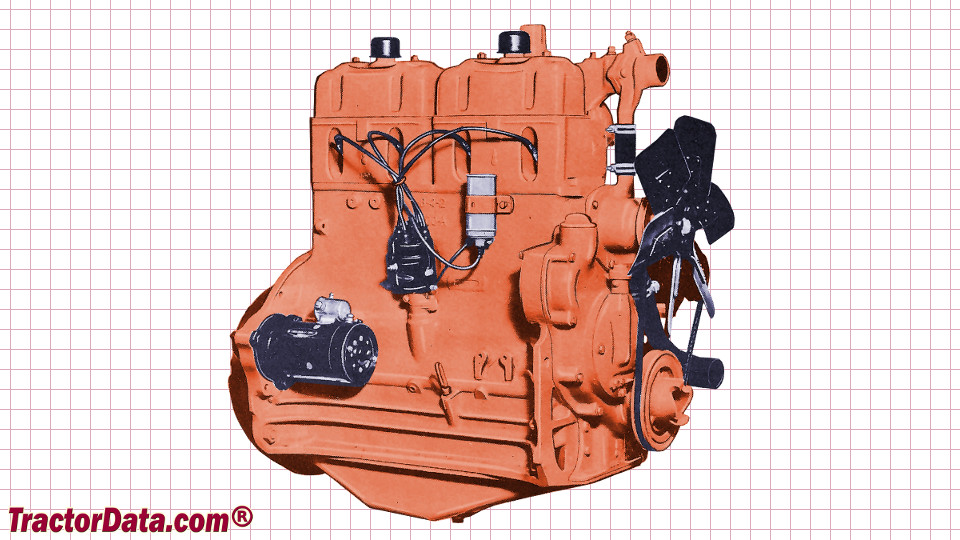

    J.I. Case 410 - engine

    J.I. Case 410 tractor photo
    1955 - 1957   400 Series
    Standard-tread tractor
    Previous model:J.I. Case D
    Next model:J.I. Case 710-B
    more J.I. Case 410 specifications...






    Engine Detail:

     J.I. Case
     gasoline
     4-cylinder 8-valve
     liquid-cooled
     251 ci [4.1 L]
    Bore/Stroke:4.00x5.00 inches [102 x 127 mm]
    Compression:6.5:1
    Rated RPM:1500
    Starter volts:6
    Coolant capacity:29.6 qts [28.0 L]


    Engine Detail:

     J.I. Case
     LP-gas
     4-cylinder
     liquid-cooled
     251 ci [4.1 L]
    Bore/Stroke:4.00x5.00 inches [102 x 127 mm]
    Rated RPM:1500


    Engine Detail:

     J.I. Case
     distillate
     4-cylinder
     liquid-cooled
     251 ci [4.1 L]
    Bore/Stroke:4.00x5.00 inches [102 x 127 mm]
    Rated RPM:1500
