J.I. Case 701-B Tests


J.I. Case 701-B tractor photo
1958 - 1959
700B Series
Row-Crop tractor
401
Series:701-B
Nebraska Tractor Test 693

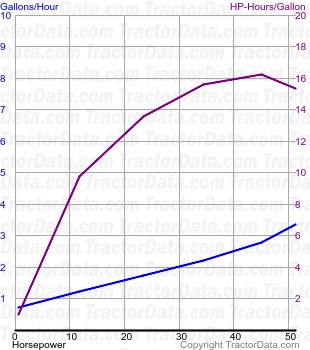

701-B fuel use from test 693
Nebraska Tractor Test 693
Diesel 8-speed 2WD
April 20 - 29, 1959
Link: Nebraska Tractor Test 693 file
PTO performance
Power at rated engine speed:51.20 hp
38.2 kW
Fuel use:3.4 gal/hour
12.9 l/hour
Power at rated PTO speed:50.27 hp
37.5 kW
Fuel use:3.3 gal/hour
12.5 l/hour
Drawbar performance
Max power:46.44 hp
34.6 kW
Fuel use:3.5 gal/hour
13.2 l/hour
Gear 5 used for power test.
Max pull:7,090 lbs
3216 kg
Gear 2 used for pull test.
