J.I. Case 311-B Transmission


J.I. Case 311-B tractor photo
1958 - 1959
300B Series
Row-Crop tractor
Series map:
311-B
41.1hp*
*Estimated engine power for comparison only.
Transmissions overview
4-speed gear
12-speed gear
Transmission
Typegear
Gears4 forward and 1 reverse
Clutch235mm dry disc
Oil capacity28 qts
26.5 L
Speeds

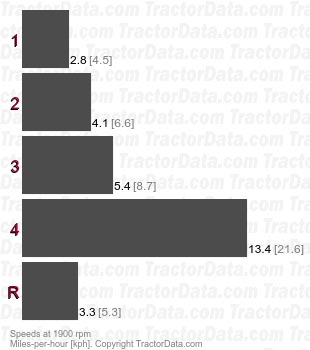

311-B  gear speeds
Transmission
TransmissionTripl-Range
Typegear
Gears12 forward and 3 reverse
Oil capacity28 qts
26.5 L
Four gears, plus reverse, in three ranges.
Speeds
With 12-28 rear tires.

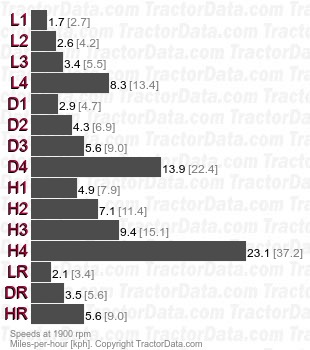

311-B Tripl-Range gear speeds
Shift Pattern

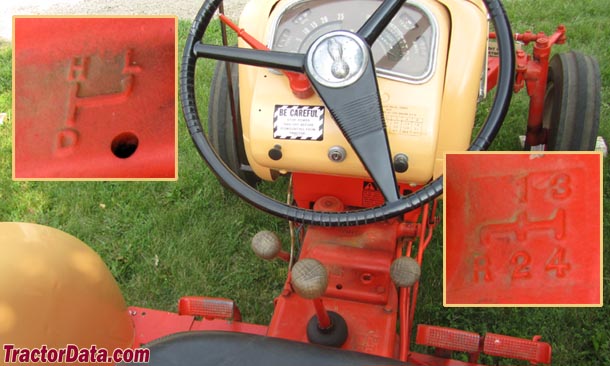

J.I. Case 311-B transmission controls
J.I. Case 311-B Transmission
J.I. Case 311-B transmission image
1Foot clutch
2Hand clutch
3Throttle
4Gear shift
5Range shift
6Brakes
