Tractors > Farmall > Super AM

Farmall Super AM - engine

No photo available
1953 - 1957
Row-Crop tractor
more Farmall Super AM specifications...


Engine Detail:

 International Harvester
 264 ci [4.3 L]
Bore/Stroke:4.00x5.25 inches [102 x 133 mm]
Air cleaner:oil bath
Rated RPM:1450
Firing order:1-3-4-2

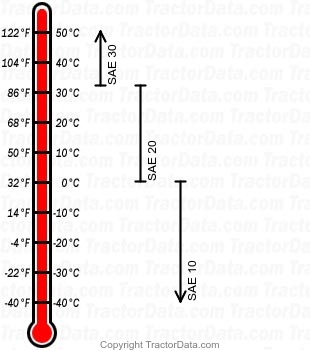

Oil capacity:7.7 qts [7.3 L]
Coolant capacity:24 qts [22.7 L]
Sparkplug gap:0.032 inches [0.813 mm]
Intake valve clearance:0.017 inches [0.432 mm] (hot)
Exhaust valve clearance:0.017 inches [0.432 mm] (hot)
