Tractors > Deutz-Allis > 6080

Deutz-Allis 6080 - transmission

Deutz-Allis 6080 tractor photo
1985 - 1988
Row-Crop tractor
Previous model:Allis Chalmers 6080
Series back:Deutz-Allis 8070
more Deutz-Allis 6080 specifications...





Note: the Deutz-Allis model 6080 is the same as the Allis Chalmers 6080. The following data is from the 6080 listing.


Transmission:

Type:synchronized
Gears:12 forward and 3 reverse
Oil capacity:12 qts [11.4 L]
Four gears in three ranges. Synchronized shifting using the clutch.

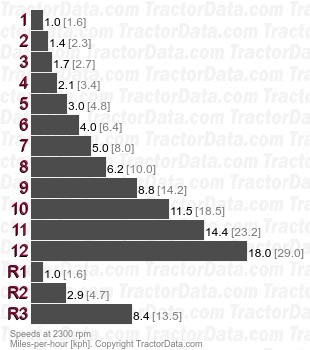

Speeds:With 18.4x34 rear tires.
6080  synchronized speeds
