    Deutz-Allis 8070 - transmission

    Deutz-Allis 8070 tractor photo
    1985 - 1988
    Previous model:Allis Chalmers 8070
    Next model:Deutz-Allis 9170
    Larger:Deutz-Allis 6080
    Smaller:Deutz-Allis 8050
    more Deutz-Allis 8070 specifications...





    Note: the Deutz-Allis model 8070 is the same as the Allis Chalmers 8070. The following data is from the 8070 listing.


    Transmission:

    Transmission:Allis-Chalmers Power Director
    Type:partial power shift
    Gears:20 forward and 4 reverse
    Oil capacity:29.6 qts [28.0 L]
    Five gears (1-5) in two ranges (slow/fast) with a two-speed power shift (low/high) controlled by left-hand lever.
    Speeds:With 18.4x38 rear tires.

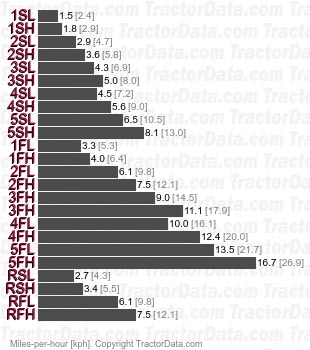

    8070 Power Director partial power shift speeds


    Transmission:

    Transmission:Power Shift
    Type:Allis-Chalmers
    Gears:12 forward and 2 reverse
    Oil capacity:29.6 qts [28.0 L]
    Six power shift gears (1-6) in two ranges (slow/fast). Clutch must be used to shift range. Pressing the clutch pedal half-way automatically downshifts from 5th/6th to 4th gear.
    Speeds:With 18.4x38 rear tires.

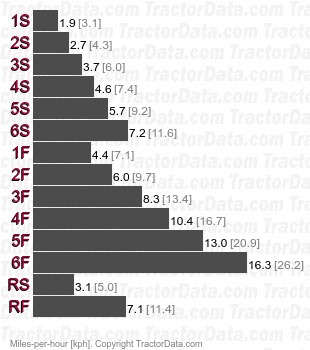

    8070 Power Shift Allis-Chalmers speeds
