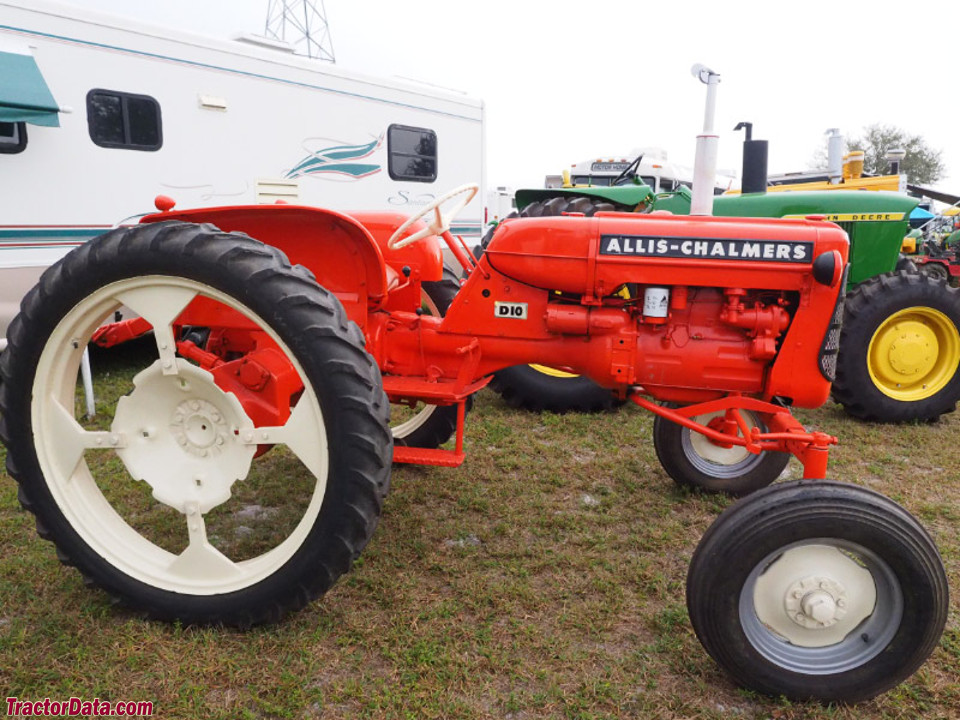

Allis Chalmers D10 High Clearance
| | 1959 - 1967 |
| High-Clearance tractor |
|
| Production |
| Manufacturer: | Allis Chalmers
|
| Type: | High-Clearance tractor
|
| Variants |
| D10: | utility tractor
|
| Allis Chalmers D10 High Clearance Power |
| Drawbar (claimed): | 26 hp
19.4 kW
|
| PTO (claimed): | 30.1 hp
22.4 kW
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| Steering: | manual
|
| Brakes: | differential mechanical shoe
|
| Cab: | Open operator station
|
| Transmission: | 4-speed
|
 Transmission details ... |
| Capacity |
| Hydraulic system: | 0.75 gal
2.8 L
|
| Hydraulics |
| Type: | live
|
| Capacity: | 0.75 gal
2.8 L
|
| Rear valves: | 1 or 2
|
| Tractor hitch |
| Rear Type: | I
|
| Type: | Snap-Couple
|
| Power Take-off (PTO) |
| Rear RPM: | 540
|
| Belt Pulley |
| RPM: | 1220
|
| Speed: | 2556 ft/min
779.07 meters/min
|
