Tractors > Farmall > Hydro 70

Farmall Hydro 70 - tests

Farmall Hydro 70 tractor photo
more Farmall Hydro 70 specifications...





Note: the Farmall model Hydro 70 is the same as the International Harvester Hydro 70. The following data is from the Hydro 70 listing.


Nebraska Tractor Test 1154:

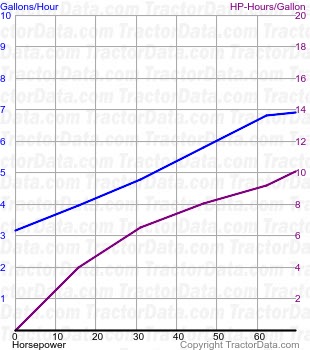

Hydro 70 fuel use from test 1154
Test Date:November 14 - December 3, 1973
Type:Gasoline hydrostatic 2WD
PTO power (rated engine speed):69.61 hp [51.9 kW]
PTO fuel use (engine speed):6.9 gal/hour [26.1 l/hour]
PTO power (rated PTO speed):64.10 hp [47.8 kW]
PTO fuel use (PTO speed):5.8 gal/hour [22.0 l/hour]
Drawbar power (max):53.86 hp [40.2 kW]
Drawbar fuel use (max):7.7 gal/hour [29.1 l/hour]
Drawbar pull (max):8,427 lbs [3822 kg]
Max pull gear:Low - 2.2MPH
Test report:PDF file


Nebraska Tractor Test 1155:

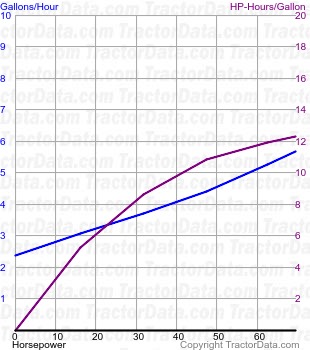

Hydro 70 fuel use from test 1155
Test Date:November 14 - December 3, 1973
Type:Diesel hydrostatic 2WD
PTO power (rated engine speed):69.51 hp [51.8 kW]
PTO fuel use (engine speed):5.6 gal/hour [21.2 l/hour]
PTO power (rated PTO speed):65.41 hp [48.8 kW]
PTO fuel use (PTO speed):5.3 gal/hour [20.1 l/hour]
Drawbar power (max):53.10 hp [39.6 kW]
Drawbar fuel use (max):5.6 gal/hour [21.2 l/hour]
Drawbar pull (max):8,310 lbs [3769 kg]
Max pull gear:Low - 2.3MPH
Test report:PDF file
