Farmall 1568 Tests


Farmall 1568 tractor photo
1974 - 1976
66 Series
Row-Crop tractor
Series map:
1568
172.0hp

Note: the Farmall model 1568 is the same as the International Harvester 1568. The following data is from the 1568 listing.
Nebraska Tractor Test 1175

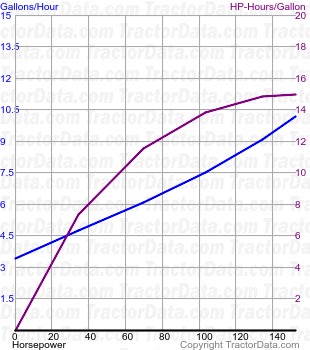

1568 fuel use from test 1175
Nebraska Tractor Test 1175
Diesel 12-speed 2WD
May 3 - 15, 1975
Link: Nebraska Tractor Test 1175 file
PTO performance
Power at rated engine speed150.70 hp
112.4 kW
Fuel use10.1 gal/hour
38.2 l/hour
Power at rated PTO speed147.79 hp
110.2 kW
Fuel use9.9 gal/hour
37.5 l/hour
Drawbar performance
Max power130.17 hp
97.1 kW
Fuel use13.0 gal/hour
49.2 l/hour
Gear 1-Hi-TA used for power test.
