| | 66 Series | | Row-Crop tractor |
|
Series map:
1066
1468
1566
140.0hp*
147.8hp*
178.9hp*
*Estimated engine power for comparison only.
Note: the Farmall model 1468 is the same as the International Harvester 1468. The following data is from the 1468 listing. |
| Transmissions overview |

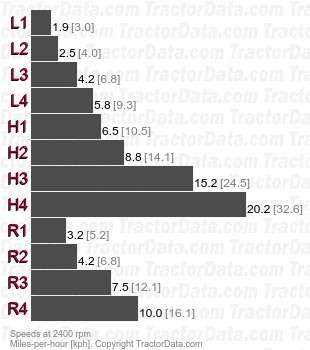

| 8-speed gear |

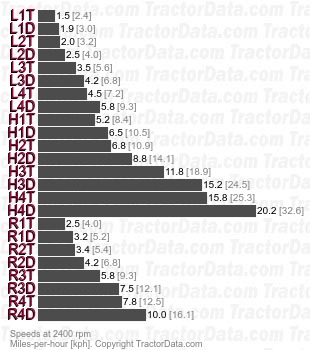

| 16-speed two-speed power shift |
| Transmission |
| Type | gear
|
| Gears | 8 forward and 4 reverse
|
| Clutch | dry disc
|
| Speeds |
| With 18.4-38 rear tires |
|
| Transmission |
| Transmission | Torque Amplifier
|
| Type | two-speed power shift
|
| Gears | 16 forward and 8 reverse
|
| Speeds |
| With 18.4-38 rear tires. |
|
