Tractors > Farmall > 826

Farmall 826 - tests

Farmall 826 tractor photo
1969 - 1971
more Farmall 826 specifications...





Note: the Farmall model 826 is the same as the International Harvester 826. The following data is from the 826 listing.


Nebraska Tractor Test 1045:

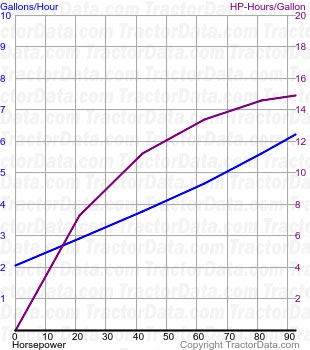

826 fuel use from test 1045
Test Date:June 3 - 27, 1970
Type:D358 diesel Torque Amplifier 2WD
PTO power (rated engine speed):92.19 hp [68.7 kW]
PTO fuel use (engine speed):6.2 gal/hour [23.5 l/hour]
PTO power (rated PTO speed):85.34 hp [63.6 kW]
PTO fuel use (PTO speed):1.0 gal/hour [3.8 l/hour]
Drawbar power (max):78.92 hp [58.9 kW]
Drawbar fuel use (max):6.2 gal/hour [23.5 l/hour]
Drawbar pull (max):9,631 lbs [4368 kg]
Max pull gear:3-Lo-TA
Test report:PDF file


Nebraska Tractor Test 1046:

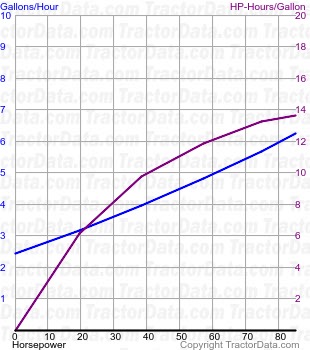

826 fuel use from test 1046
Test Date:June 6 - 27, 1970
Type:D358 diesel hydrostatic 2WD
PTO power (rated engine speed):84.66 hp [63.1 kW]
PTO fuel use (engine speed):6.3 gal/hour [23.8 l/hour]
PTO power (rated PTO speed):79.00 hp [58.9 kW]
PTO fuel use (PTO speed):5.6 gal/hour [21.2 l/hour]
Drawbar power (max):61.39 hp [45.8 kW]
Drawbar fuel use (max):6.1 gal/hour [23.1 l/hour]
Drawbar pull (max):8,780 lbs [3982 kg]
Max pull gear:Lo
Test report:PDF file
