Tractors > Farmall > 766

Farmall 766 - tests

Farmall 766 tractor photo
Row-Crop tractor
more Farmall 766 specifications...





Note: the Farmall model 766 is the same as the International Harvester 766. The following data is from the 766 listing.


Nebraska Tractor Test 1094:

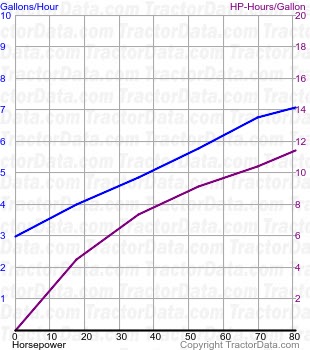

766 fuel use from test 1094
Test Date:4/20/1972
Type:Gasoline Torque Amplifier 2WD
PTO power (rated engine speed):79.73 hp [59.5 kW]
PTO fuel use (engine speed):7.1 gal/hour [26.9 l/hour]
PTO power (rated PTO speed):73.96 hp [55.2 kW]
PTO fuel use (PTO speed):6.3 gal/hour [23.8 l/hour]
Drawbar power (max):71.32 hp [53.2 kW]
Drawbar fuel use (max):7.3 gal/hour [27.6 l/hour]
Drawbar pull (max):8,841 lbs [4010 kg]
Max pull gear:2-Lo-Direct
Test report:PDF file


Nebraska Tractor Test 1117:

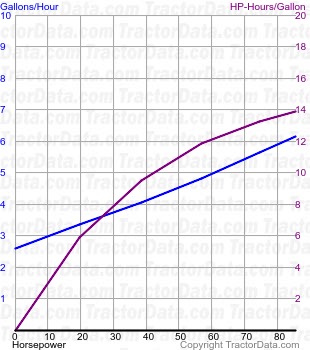

766 fuel use from test 1117
Test Date:November 10 - December 5, 1972
Type:Diesel Torque Amplifier 2WD
PTO power (rated engine speed):85.45 hp [63.7 kW]
PTO fuel use (engine speed):6.2 gal/hour [23.5 l/hour]
PTO power (rated PTO speed):85.66 hp [63.9 kW]
PTO fuel use (PTO speed):5.8 gal/hour [22.0 l/hour]
Drawbar power (max):73.37 hp [54.7 kW]
Drawbar fuel use (max):6.1 gal/hour [23.1 l/hour]
Drawbar pull (max):9,236 lbs [4189 kg]
Max pull gear:2-Lo-Direct
Test report:PDF file
