Tractors > Farmall > 756

Farmall 756 - transmission

Farmall 756 tractor photo
1967 - 1971
Row-Crop tractor
Previous model:Farmall 706
Series next:Farmall 856
more Farmall 756 specifications...






Transmission:

Transmission:gear
Gears:8 forward and 4 reverse
Clutch:dry disc
Oil capacity:68 qts [64.4 L]
Four gears each in high, low, and reverse ranges.
Speeds:With 15.5-38 rear tires.

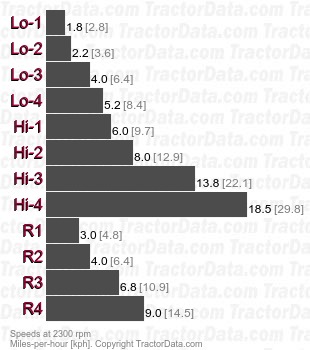

756 gear  speeds


Transmission:

Transmission:Torque Amplifier
Gears:16 forward and 8 reverse
Clutch:dry disc
Oil capacity:68 qts [64.4 L]
The Torque Amplifier (TA) provides a power shift from direct drive (DD) to a lower speed for every gear and range.
Speeds:With 15.5-38 rear tires.

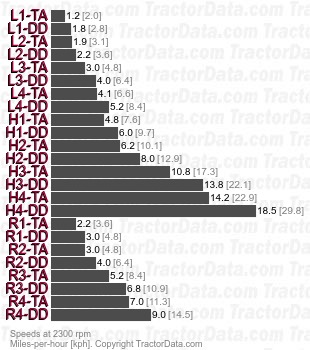

756 Torque Amplifier  speeds
