Farmall 706 Transmission


Farmall 706 tractor photo
1963 - 1967
Row-Crop tractor
Series map:
706
806
89.0hp
110.0hp
Transmissions overview
8-speed
16-speed
Transmission
Transmissionsliding gear
Gears8 forward and 4 reverse
Clutch12-inch dry disc
Oil capacity68 qts
64.4 L
Oil type
IH Hy-Tran
The 706 transmission is controlled by means of two levers. A range lever selects high, low, reverse range, or neutral. A separate speed lever selects one of four speeds. The tractor must be stopped, and the clutch used, to change range or speed gears.
Speeds
With 15.5-38 rear tires.

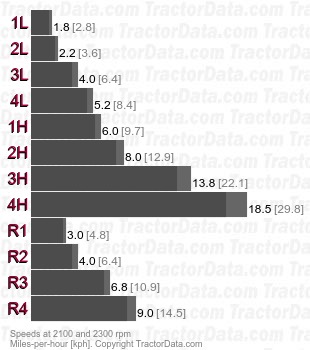

706 sliding gear  speeds
Shift Pattern

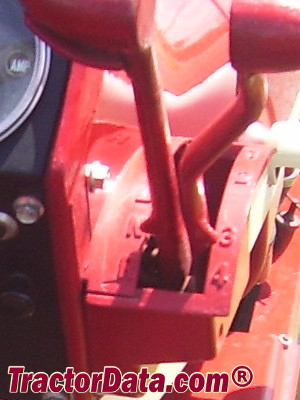

Farmall 706 transmission controls
Transmission
TransmissionTorque Amplifier
Gears16 forward and 8 reverse
Clutch12-inch dry disc
Oil capacity68 qts
64.4 L
Oil type
IH Hy-Tran
The Torque Amplifier (TA) provides a hydraulically-actuted under-drive that may be shifted, on the move, with any range and speed selection in the main transmission. Using the TA does not require the clutch or stopping the tractor. With the lever in the forward position, the TA is disengaged and the transmission is in direct drive. To slow the tractor (increasing pulling power) the TA lever should be pulled smoothly and quickly to the rear, engaging the TA. To disengage the TA and return to direct-drive, the TA should be moved forward, with a slight pause at the center position of the lever.
Speeds
With 15.5-38 rear tires.

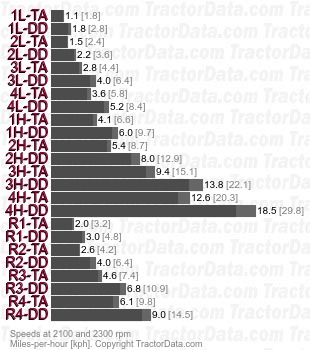

706 Torque Amplifier  speeds
