Farmall 340 - tests

Farmall 340 tractor photo
1958 - 1963
Row-Crop tractor
more Farmall 340 specifications...






Nebraska Tractor Test 665:

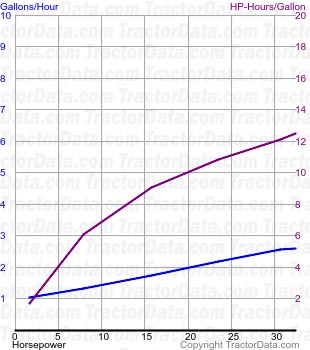

340 fuel use from test 665
Test Date:September 3 - 25, 1958
Type:Gasoline Torque Amplifier 2WD
Belt power (max):34.74 hp [25.9 kW]
Belt fuel use (max):2.9 gal/hour [11.0 l/hour]
Drawbar power (max):31.76 hp [23.7 kW]
Drawbar pull (max):5,142 lbs [2332 kg]
Max pull gear:1-DD
Test report:PDF file


Nebraska Tractor Test 775:

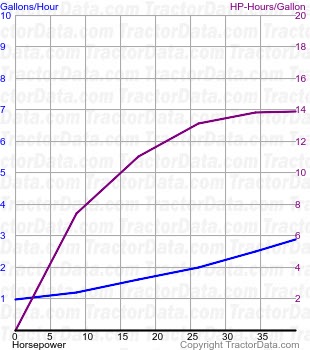

340 fuel use from test 775
Test Date:October 26 - November 3, 1960
Type:Diesel Torque Amplifier 2WD
PTO power (rated engine speed):38.93 hp [29.0 kW]
PTO fuel use (engine speed):2.8 gal/hour [10.6 l/hour]
PTO power (rated PTO speed):37.39 hp [27.9 kW]
PTO fuel use (PTO speed):2.8 gal/hour [10.6 l/hour]
Drawbar power (max):36.14 hp [26.9 kW]
Drawbar fuel use (max):2.8 gal/hour [10.6 l/hour]
Drawbar pull (max):5,559 lbs [2521 kg]
Max pull gear:1-DD
Test report:PDF file
