Tractors > New Holland > 9680

New Holland 9680 Transmission



New Holland 9680 tractor photo
1994 - 1995
80 Series
Four-wheel Drive (4WD) tractor
Versatile built
Series map:
9480
9680
9880
300.0hp
350.0hp
400.0hp
Transmissions overview
12-speed partially synchronized
12-speed full power shift
Transmission
TransmissionQuadra-Sync
Typepartially synchronized
Gears12 forward and 4 reverse
Clutchhydraulic wet disc
Oil capacity50.7 qts
48.0 L
Four synchronized gears in three ranges, plus reverse range.
Speeds
9680 Quadra-Sync partially synchronized speeds
Transmission
TransmissionTwin Disc
Typefull power shift
Gears12 forward and 2 reverse
Oil capacity50 qts
47.3 L
Speeds

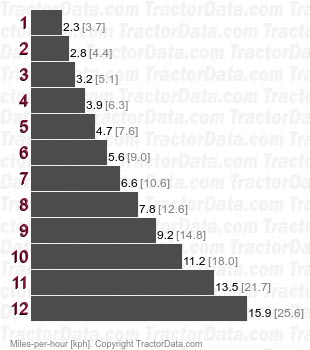

9680 full power shift speeds
