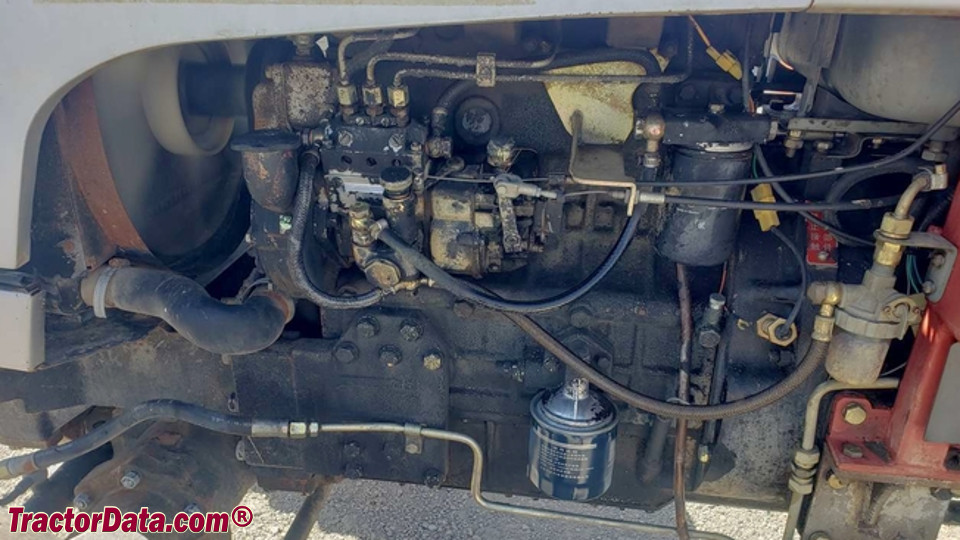

Foton 404 Engine


Engine Detail
SL3105BT
diesel
3-cylinder
liquid-cooled
Displacement:174.3 ci
2.9 L
Bore/Stroke:4.134x4.331 inches
105 x 110 mm
Power:39.4 hp
29.4 kW
Compression:17:1
Rated RPM:2200
Torque:108 lb-ft
146.4 Nm
Torque RPM:1650
Starter volts:12
Oil capacity:7.4 qts
7.0 L
Coolant capacity:8.9 qts
8.4 L
