JCB Fastrac 1125
| | 1997 - 1998 |
| Four-wheel Drive (4WD) tractor |
|
| Production |
| Manufacturer: | JCB
|
| Type: | Four-wheel Drive (4WD) tractor
|
| JCB Fastrac 1125 Power |
| Engine: | 139 hp
103.7 kW
|
| PTO (claimed): | 112 hp
83.5 kW
|
| Mechanical |
| Chassis: | 4x4 4WD
|
| Steering: | hydrostatic power
|
| Brakes: | pneumatic dry disc
|
| Cab: | Cab standard with air conditioning.
|
| Transmission: | 36-speed synchromesh
|
 Transmission details ... |
| Capacity |
| Fuel: | 58.1 gal
219.9 L
|
| Hydraulic system: | 19.8 gal
74.9 L
|
| Hydraulics |
| Capacity: | 19.8 gal
74.9 L
|
| Pressure: | 3046 psi
210.0 bar
|
| Valves: | 2 or 3
|
| Pump flow: | 19.6 gpm
74.2 lpm
|
| | 24.3 gpm
92.0 lpm *Optional
|
| Total flow: | 19.6 gpm
74.2 lpm
|
| Tractor hitch |
| Rear Type: | II
|
| | III*Optional
|
| Rear lift: | 11574 lbs
5249 kg
|
| Front Hitch: | II*Optional
|
| Front lift: | 5625 lbs
2551 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/1000 (1.375)
|
| Engine RPM: | 540@1894
1000@2088
|
| Front PTO: | independent
|
| Front RPM: | 540/1000 (1.375)
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 85
|
| Battery volts: | 12
|
| Battery AH: | 83
|
| Page information |
| Last update: | January 29, 2016
|
| Copyright: | Copyright 2021 TractorData LLC
|
| Contact: | Peter@TractorData.com
|
©2000-2021 - TractorData.com®. Notice: Every attempt is made to ensure the data listed
is accurate. However, differences between sources, incomplete listings,
errors, and data entry mistakes do occur.
Consult official
literature from the manufacturer before attempting any service or repair.
Engine details ...

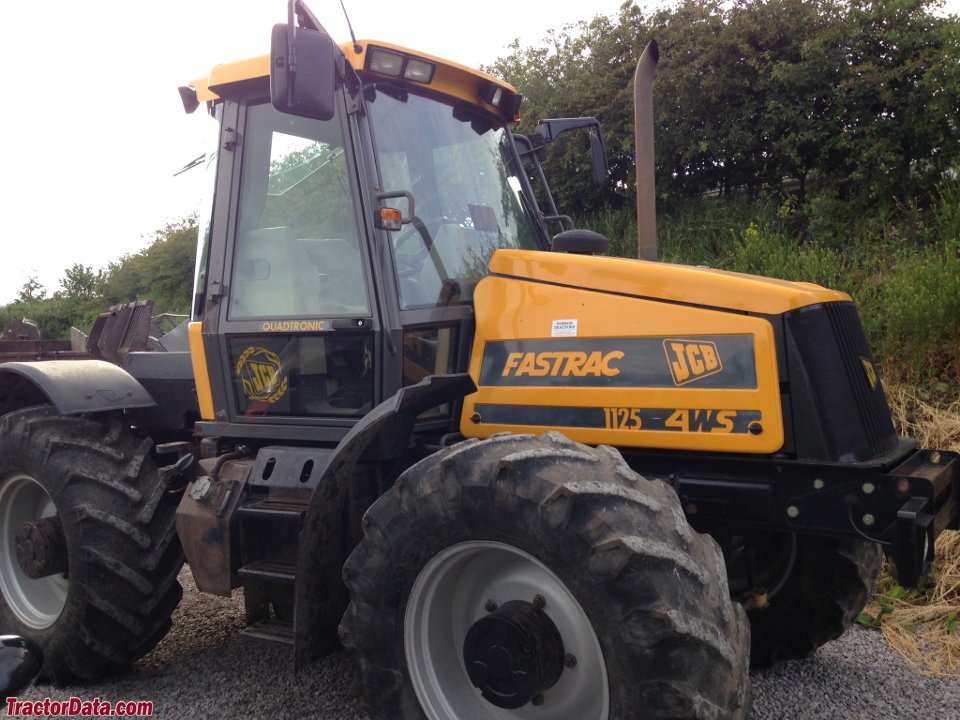

JCB Fastrac 1125 photos...
