JCB Fastrac 155

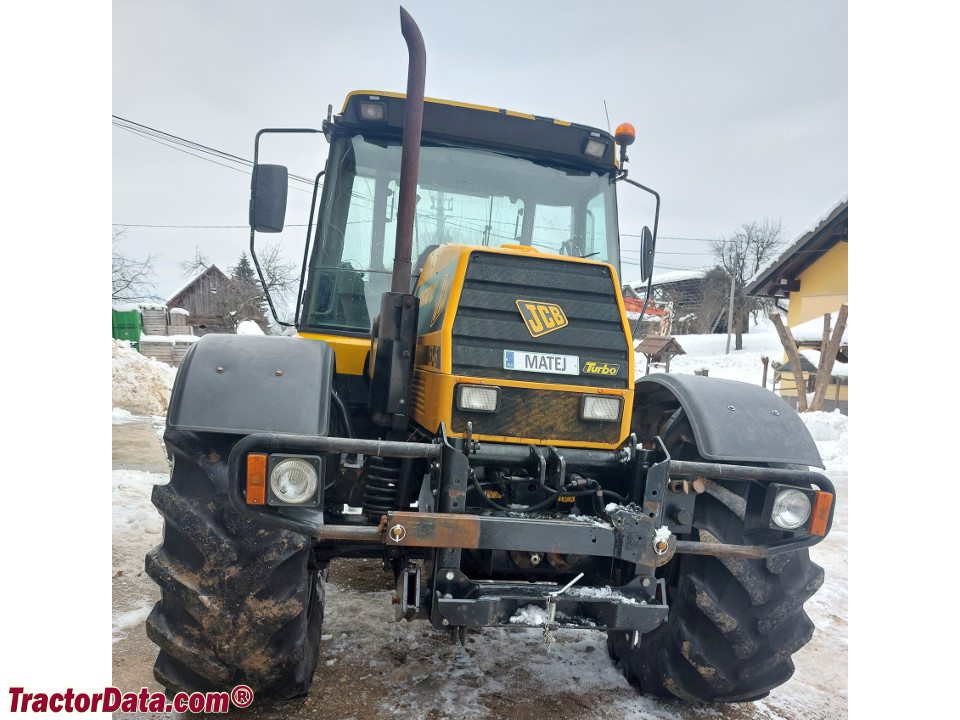

JCB Fastrac 155 tractor photo
1993 - 1997
Four-wheel Drive (4WD) tractor
Series map:
Fastrac 135
Fastrac 155
Fastrac 185
109.6kw
125.3kw
140.2kw
Production
ManufacturerJCB
Four-wheel Drive (4WD) tractor
JCB Fastrac 155 Power
Engine168 hp
125.3 kW
Mechanical
Drive4x4 4WD
Differential lockelectro-hydraulic rear
Steeringpower assist
Pneumatic dry disc brakes
Trailer brakespneumatic OptOptional
 hydraulic OptOptional
Cab standard with air conditioning.
Capacity
Fuel74 gal
280.1 L
Hydraulic system15.85 gal
60.0 L
 20.3 galOptOptional
76.8 L
Hydraulics
Capacity15.85 gal
60.0 L
 20.3 galOptOptional
76.8 L
Pressure3045 psi
210.0 bar
Valves2
Pump flow15.85 gpm
60.0 lpm
Tractor hitch
Rear TypeIII/IIIN
Controlelectronic draft control
Rear lift (at ends)13230 lbs
6001 kg
 15435 lbsOptOptional
7001 kg
Front HitchII OptOptional
Front lift6615 lbs
3000 kg
Power Take-off (PTO)
Rear PTOindependent
Clutchelectro-hydraulic
Rear RPM540/1000 (1.375)
 1000 (1.75)
Engine RPM540@2118
1000@2196
Front PTOindependent
Front RPM540/1000 (1.375)
 1000 (1.75)
Dimensions & Tires
Wheelbase118.5 inches
300 cm
Weight14374 lbs
6520 kg
Front tire480/70R30
Rear tire480/70R30
Full dimensions and tires ...
Electrical
Groundnegative
Charging systemalternator
Charging amps85
Batteries2
Battery volts12
