Renault 981 Transmission


Renault 981 tractor photo
1977 - 1980
Row-Crop tractor
Transmissions overview
12-speed partially synchronized
16-speed creeper
Transmission
Type:partially synchronized
Gears:12 forward and reverse
Clutch:dry disc
Four synchronized gears in three ranges.
Speeds
With 16.9/14-38 rear tires.

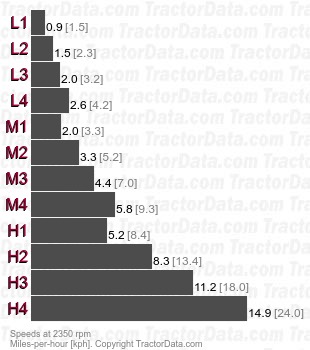

981  partially synchronized speeds
Transmission
Type:creeper
Gears:16 forward and reverse
Speeds
With 16.9/14-38 rear tires. Medium- and high-range speeds are same as 12-speed transmission.

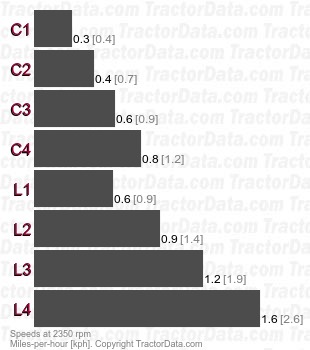

981  creeper speeds
