Landini 6880 Transmission
|
|
| Transmissions overview | |
| 12-speed synchromesh | |
| 12-speed shuttle | |
| 24-speed synchromesh | |
| 24-speed creeper |
| Transmission | |
| Type: | synchromesh |
| Gears: | 12 forward and 4 reverse |
| Clutch: | dry disc |
| Four gears in three ranges. | |

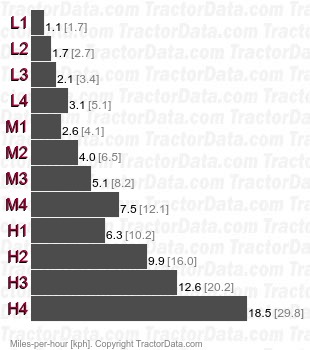

| Speeds | |
|
| Transmission | |
| Type: | shuttle |
| Gears: | 12 forward and reverse |
| Clutch: | dry disc |
| Four gears in three ranges with shuttle. | |
| Speeds | |
| With 16.9/14-34 rear tires. Reverse speeds are 1% faster than forward. | |
|
| Transmission | |
| Type: | synchromesh |
| Gears: | 24 forward and 12 reverse |
| The base transmission can be equipped with either an underdrive or overdrive range. The underdrive option reduces base speeds by 22%. The overdrive option increases base speeds by 29%. | |
| Transmission | |
| Type: | creeper |
| Gears: | 24 forward and 12 reverse |

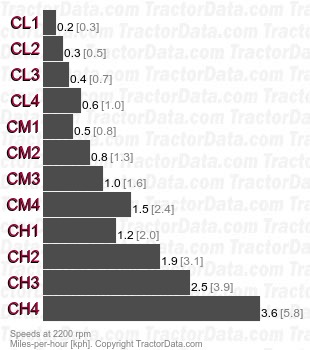

| Speeds | |
| With 16.9/14-34 rear tires. | |
|
