Ford TW-35 Tests
|
|
| Tractor Tests | |
| NTTL 1517: diesel 16-speed 2WD | |
| NTTL 1537: diesel 16-speed 4WD |

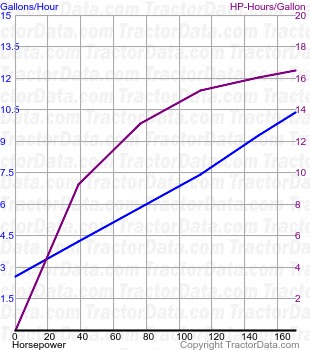

| Nebraska Tractor Test 1517 | |||
| |||
| Nebraska Tractor Test 1517 | |
| Diesel 16-speed 2WD April 26 - May 8, 1984 Link: Nebraska Tractor Test 1517 file | |
| PTO performance | |
| Power at rated engine speed | 170.30 hp 127.0 kW |
| Fuel use | 10.3 gal/hour 39.0 l/hour |
| Power at rated PTO speed | 166.67 hp 124.3 kW |
| Fuel use | 9.6 gal/hour 36.3 l/hour |
| Drawbar performance | |
| Max power | 145.43 hp 108.4 kW |
| Fuel use | 10.2 gal/hour 38.6 l/hour |
| Gear 5L used for power test. | |
| Max pull | 17,054 lbs 7735 kg |
| Gear 2L used for pull test. | |

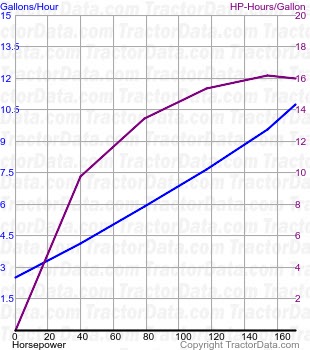

| Nebraska Tractor Test 1537 | |||
| |||
| Nebraska Tractor Test 1537 | |
| Diesel 16-speed 4WD September 12 - 24, 1984 Link: Nebraska Tractor Test 1537 file | |
| PTO performance | |
| Power at rated engine speed | 171.12 hp 127.6 kW |
| Fuel use | 10.2 gal/hour 38.6 l/hour |
| Power at rated PTO speed | 162.55 hp 121.2 kW |
| Fuel use | 9.2 gal/hour 34.8 l/hour |
| Drawbar performance | |
| Max power | 145.69 hp 108.6 kW |
| Fuel use | 10.1 gal/hour 38.2 l/hour |
| Gear 5L used for power test. | |
| Max pull | 18,823 lbs 8538 kg |
| Gear 2L used for pull test. | |
