| | 1985 - 1986 |
| 90 Series | | Row-Crop tractor |
|
Series map:
4490
4690
102.2kw
121.9kw
| Transmission |
| Transmission | Hi-Lo
|
| Type | partial power shift
|
| Gears | 12 forward and 4 reverse
|
| Clutch | 15.5-inch dry disc
|
| Oil capacity | 40.1 qts
38.0 L
|
| Three gears (1-3) in two ranges (Slow-Fast) with hydraulic Hi-Lo power shift. Range shifts are synchronized with the clutch. Tractor must be stopped to shift gears (1-3 and R). |

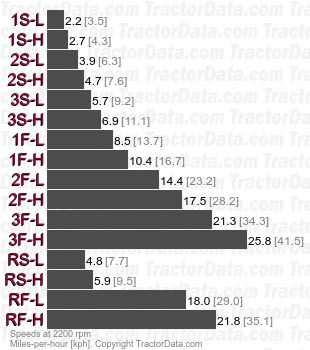

| Speeds |
| With 24.5x32 rear tires. |
|

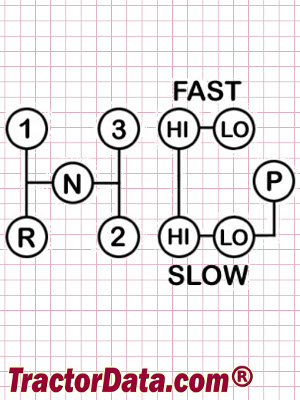

| Shift Pattern |
 |
