| 1985 - 1986 |
90 Series | Row-Crop tractor |
|
Series map:
4290
4490
4690
88.0kw
102.2kw
121.9kw
Transmission |
Transmission | Hi-Lo
|
Type | partial power shift
|
Gears | 12 forward and 4 reverse
|
Clutch | 15.5-inch dry disc
|
Oil capacity | 40.1 qts 38.0 L
|
Three gears (1-3) in two ranges (Slow-Fast) with hydraulic Hi-Lo power shift. Range shifts are synchronized with the clutch. Tractor must be stopped to shift gears (1-3 and R). |
Speeds |
With 24.5x32 rear tires. |
|

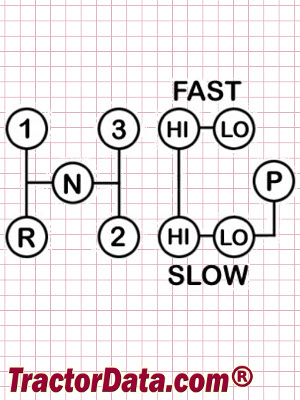

Shift Pattern |
|
