Tractors > Cub Cadet > 7305

Cub Cadet 7305 - engine

Cub Cadet 7305 tractor photo
1998 - 2003   7000 Series
Compact Utility tractor
Series back:Cub Cadet 7300
more Cub Cadet 7305 specifications...






Engine Detail:

 Mitsubishi
 diesel
 3-cylinder
 liquid-cooled
 91.29 ci [1.5 L]
Bore/Stroke:3.307x3.543 inches [84 x 90 mm]
Power (gross):30 hp [22.4 kW]
Fuel system:direct injection
Air cleaner:dry
Pre-heating:glow plugs
Compression:18:1
Rated RPM:2750
Idle RPM:970-2980
Firing order:1-3-2
Starter volts:12
Starter power:2.15 hp [1.6 kW]

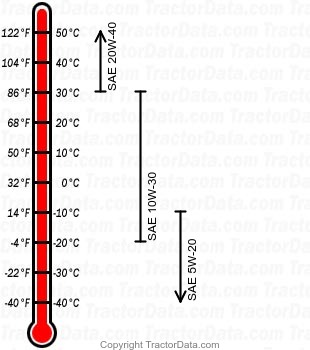

Oil capacity:5 qts [4.7 L]
Oil change:100 h
Coolant capacity:6.7 qts [6.3 L]
Intake valve clearance:0.010 inches [0.254 mm] *Cold
Exhaust valve clearance:0.010 inches [0.254 mm] *Cold
