Cub Cadet 7264 - engine

Cub Cadet 7264 tractor photo
2003 - 2004   7000 Series
Compact Utility tractor
Series next:Cub Cadet 7304
Series back:Cub Cadet 7254
more Cub Cadet 7264 specifications...






Engine Detail:

 Daihatsu DM950D
 diesel
 3-cylinder
 liquid-cooled
 58.1 ci [1.0 L]
Bore/Stroke:2.835x3.071 inches [72 x 78 mm]
Power:26 hp [19.4 kW]
Fuel system:indirect injection
Air cleaner:paper element
Rated RPM:3600
Idle RPM:1200-3600
Starter volts:12

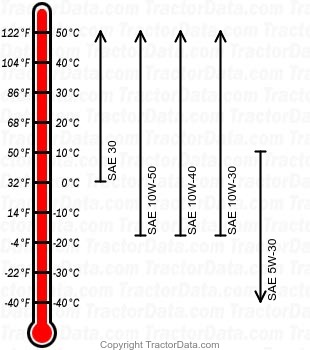

Oil capacity:3.5 qts [3.3 L]
Oil change:150 h
Coolant capacity:5.3 qts [5.0 L]
Intake valve clearance:0.008 inches [0.203 mm] (cold)
Exhaust valve clearance:0.008 inches [0.203 mm] (cold)
