Series: | 4020 Hi-Crop |
4230 Hi-Crop ↓ |
Engines overview | |
John Deere 6.6L 6-cyl diesel | |
John Deere 5.9L 6-cyl LP gas |
Engine Detail | |
John Deere | |
diesel | |
6-cylinder 12-valve | |
liquid-cooled inline | |
Displacement: | 404 ci 6.6 L |
Bore/Stroke: | 4.25x4.75 inches 108 x 121 mm |
Compression: | 16.5:1 |
Rated RPM: | 2200 |
Idle RPM: | 600-2500 |
Operating RPM: | 1500-2200 |
Firing order: | 1-5-3-6-2-4 |
Starter: | electric |
Starter volts: | 24 (early) |
12 (late) | |
Coolant capacity: | 24 qts 22.7 L |
Intake valve clearance: | 0.018 inches 0.457 mm |
Exhaust valve clearance: | 0.018 inches 0.457 mm |

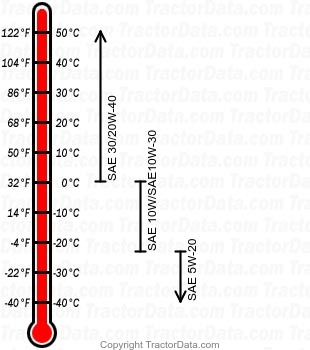

Engine Oil | |
Oil capacity: | 8 qts 7.6 L |
Engine Detail | |
John Deere | |
LP gas | |
6-cylinder 12-valve | |
liquid-cooled inline | |
Displacement: | 362 ci 5.9 L |
Bore/Stroke: | 4.25x4.25 inches 108 x 108 mm |
Compression: | 9.0:1 |
Rated RPM: | 2200 |
Firing order: | 1-5-3-6-2-4 |
Starter type: | 12 |
Oil capacity: | 8 qts 7.6 L |
Coolant capacity: | 24 qts 22.7 L |
