| | 1936 - 1939 |
| Row-Crop tractor |
|
| Engine Detail |
| Massey-Harris |
| gasoline |
| 4-cylinder |
| liquid-cooled vertical I-head |
| Displacement | 247.7 ci
4.1 L
|
| Bore/Stroke | 3.875x5.25 inches
98 x 133 mm
|
| Rated RPM | 1200
|
| | 1400 *Twin Power option.
|
| Coolant capacity | 20 qts
18.9 L
|

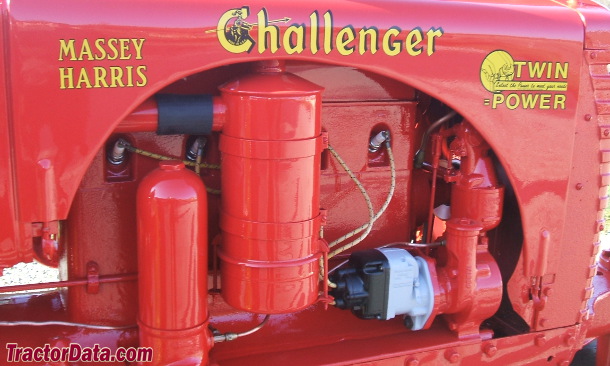

| Massey-Harris Challenger Engine |
 |
| Image courtesy of Cyrille Brouard |
