| | 1996 - 2000 |
| 9082 Series | | Four-wheel Drive (4WD) tractor | | Versatile built |
|
Series map:
9682
9882
360.0hp
425.0hp
| Transmission |
| Transmission | Quadra-Sync
|
| Type | partially synchronized
|
| Gears | 12 forward and 4 reverse
|
| Clutch | 11-inch hydraulic wet disc
|
| Four speeds (1-4) in three ranges (L/M/H) plus reverse range. Speed changes are synchronized using the clutch. Tractor must be stopped to shift ranges. Depressing the clutch fully activates a transmission brake, it is recommended to depress it two-thirds when shifting gears. |

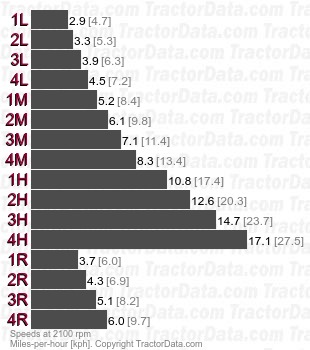

| Speeds |
| With 20.8R42 rear tires. |
|
| Shift Pattern |
 |
