Tractors > New Holland > 9482

New Holland 9482 Engine



New Holland 9482 tractor photo
1996 - 2000
9082 Series
Four-wheel Drive (4WD) tractor
Versatile built
Series map:
9282
9482
9682
260.0hp
310.0hp
360.0hp
Engine Detail
Cummins M11
turbocharged aftercooled diesel
6-cylinder
liquid-cooled vertical
Displacement660 ci
10.8 L
Bore/Stroke4.921x5.787 inches
125 x 147 mm
Power310 hp
231.2 kW
Air cleanerdual paper elements
Compression16.1:1
Rated RPM2100
Idle RPM900-2460
Torque1050 lb-ft
1423.8 Nm
Torque RPM1400
Firing order1-5-3-6-2-4
Starter volts12
Coolant capacity61.2 qts
57.9 L
Engine Oil

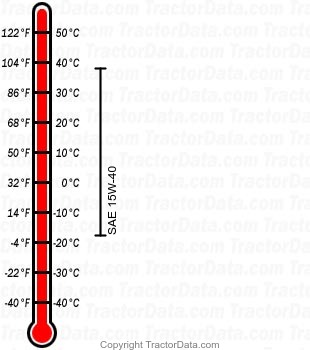

9482 diesel engine oil chart
Oil capacity38.8 qts
36.7 L
Oil change250 h
