Tractors > Challenger > MT545B

Challenger MT545B - tests

Challenger MT545B tractor photo
2004 - 2011   MT500B Series
Model years
Row-Crop tractor
Previous model:Challenger MT545
Series next:Challenger MT555B
Series back:Challenger MT535B
more Challenger MT545B specifications...






OCED Tractor Test 2225:

Nebraska summary:508

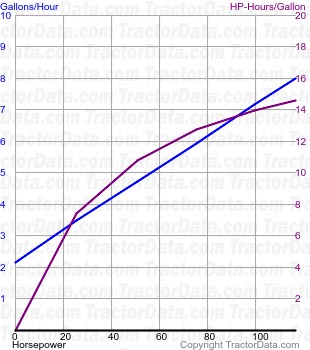

MT545B fuel use from test 508
Test Date:April 2004 - June 2004,
Type:Diesel AutoPower IV 4WD
PTO power (max):124.0 hp [92.5 kW]
PTO fuel use (max):7.5 gal/hour [28.4 l/hour]
PTO power (rated engine speed):115.7 hp [86.3 kW]
PTO fuel use (engine speed):8.0 gal/hour [30.3 l/hour]
PTO power (rated PTO speed):122.7 hp [91.5 kW]
PTO fuel use (PTO speed):7.4 gal/hour [28.0 l/hour]
Drawbar power (max):100.2 hp [74.7 kW]
Drawbar pull (max):12,165 lbs [5518 kg]
Max pull gear:1TD
Test report:PDF file


OCED Tractor Test 2195:

Nebraska summary:509
MT545B fuel use from test 509
Test Date:February 2004 - April 2004,
Type:Diesel CVT 4WD
PTO power (max):125.7 hp [93.7 kW]
PTO fuel use (max):7.8 gal/hour [29.5 l/hour]
PTO power (rated engine speed):116.3 hp [86.7 kW]
PTO fuel use (engine speed):8.0 gal/hour [30.3 l/hour]
PTO power (rated PTO speed):124.6 hp [92.9 kW]
PTO fuel use (PTO speed):8.0 gal/hour [30.3 l/hour]
Drawbar power (max):100.4 hp [74.9 kW]
Drawbar fuel use (max):8.0 gal/hour [30.3 l/hour]
Drawbar pull (max):14,690 lbs [6663 kg]
Max pull gear:4.0 KPH
Test report:PDF file
