Challenger MT535 Tests
|
|
| OCED Tractor Test 1861 | |||
| |||
| OCED Tractor Test 1861 | |
| Diesel 32-speed 4WD December 1997 - September 1999, Link: OCED Tractor Test 1861 file | |
| PTO performance | |
| Max power: | 103.9 hp 77.5 kW |

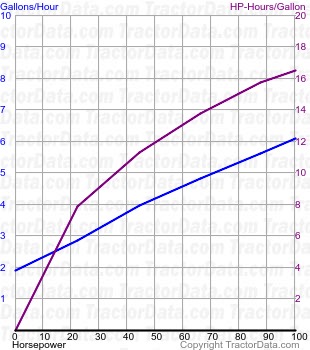

| Fuel use: | 5.9 gal/hour 22.3 l/hour |
| Power at rated engine speed: | 100.2 hp 74.7 kW |
| Fuel use: | 6.1 gal/hour 23.1 l/hour |
| Power at rated PTO speed: | 103.5 hp 77.2 kW |
| Fuel use: | 5.9 gal/hour 22.3 l/hour |
| Drawbar performance | |
| Max power: | 98.8 hp 73.7 kW |
| Fuel use: | 6.0 gal/hour 22.7 l/hour |
| Gear 2LA used for power test. | |
| Max pull: | 9,690 lbs 4395 kg |
| Gear 3TC used for pull test. | |
