Ford 4000 Tests


Ford 4000 tractor photo
1962 - 1975
Model year
Utility tractor
Series map:
4000
5000
50.0hp*
69.0hp
Tractor Tests
NTTL 890: 192 gasoline Select-O-Speed 2WD
NTTL 891: 192 gasoline 8-speed 2WD
NTTL 892: diesel Select-O-Speed 2WD
NTTL 893: diesel 8-speed 2WD
Nebraska Tractor Test 890

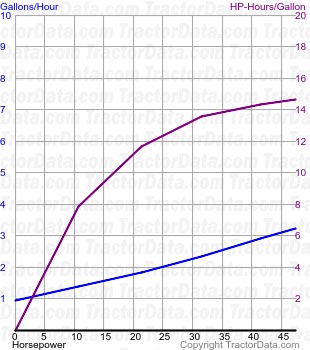

4000 fuel use from test 890
Nebraska Tractor Test 890
192 gasoline Select-O-Speed 2WD
April 21 - May 4, 1965
Link: Nebraska Tractor Test 890 file
PTO performance
Power at rated engine speed45.41 hp
33.9 kW
Fuel use4.1 gal/hour
15.5 l/hour
Power at rated PTO speed43.00 hp
32.1 kW
Fuel use26.5 gal/hour
100.3 l/hour
Drawbar performance
Max power39.2 hp
29.2 kW
Fuel use4.1 gal/hour
15.5 l/hour
Gear 6 used for power test.
Max pull6,006 lbs
2724 kg
Gear 4 used for pull test.
Nebraska Tractor Test 891

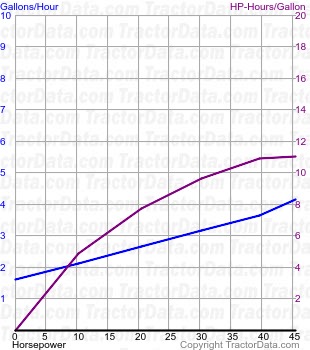

4000 fuel use from test 891
Nebraska Tractor Test 891
192 gasoline 8-speed 2WD
April 21 - May 5, 1965
Link: Nebraska Tractor Test 891 file
PTO performance
Power at rated engine speed46.31 hp
34.5 kW
Fuel use4.2 gal/hour
15.9 l/hour
Power at rated PTO speed42.63 hp
31.8 kW
Fuel use3.6 gal/hour
13.6 l/hour
Drawbar performance
Max power41.09 hp
30.6 kW
Fuel use4.3 gal/hour
16.3 l/hour
Gear 4 used for power test.
Max pull6,063 lbs
2750 kg
Gear 2 used for pull test.
Nebraska Tractor Test 892

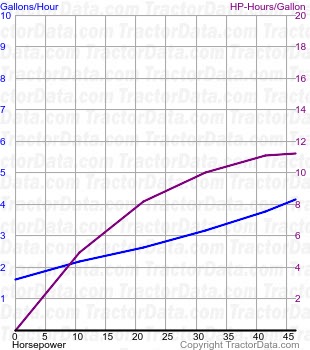

4000 fuel use from test 892
Nebraska Tractor Test 892
Diesel Select-O-Speed 2WD
April 23 - May 6, 1965
Link: Nebraska Tractor Test 892 file
PTO performance
Power at rated engine speed45.62 hp
34.0 kW
Fuel use3.3 gal/hour
12.5 l/hour
Power at rated PTO speed43.43 hp
32.4 kW
Fuel use2.9 gal/hour
11.0 l/hour
Drawbar performance
Max power38.22 hp
28.5 kW
Fuel use3.3 gal/hour
12.5 l/hour
Gear 6 used for power test.
Max pull6,060 lbs
2748 kg
Gear 4 used for pull test.
Nebraska Tractor Test 893

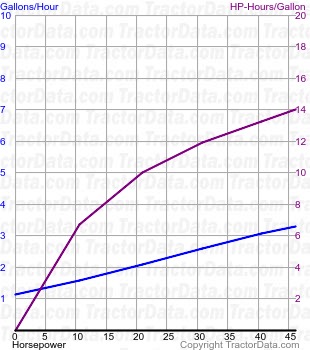

4000 fuel use from test 893
Nebraska Tractor Test 893
Diesel 8-speed 2WD
April 26 - May 12, 1965
Link: Nebraska Tractor Test 893 file
PTO performance
Power at rated engine speed46.71 hp
34.8 kW
Fuel use3.2 gal/hour
12.1 l/hour
Power at rated PTO speed41.75 hp
31.1 kW
Fuel use2.7 gal/hour
10.2 l/hour
Drawbar performance
Max power39.35 hp
29.3 kW
Fuel use3.2 gal/hour
12.1 l/hour
Gear 4 used for power test.
Max pull6019 lbs
2730 kg
Gear 2 used for pull test.
