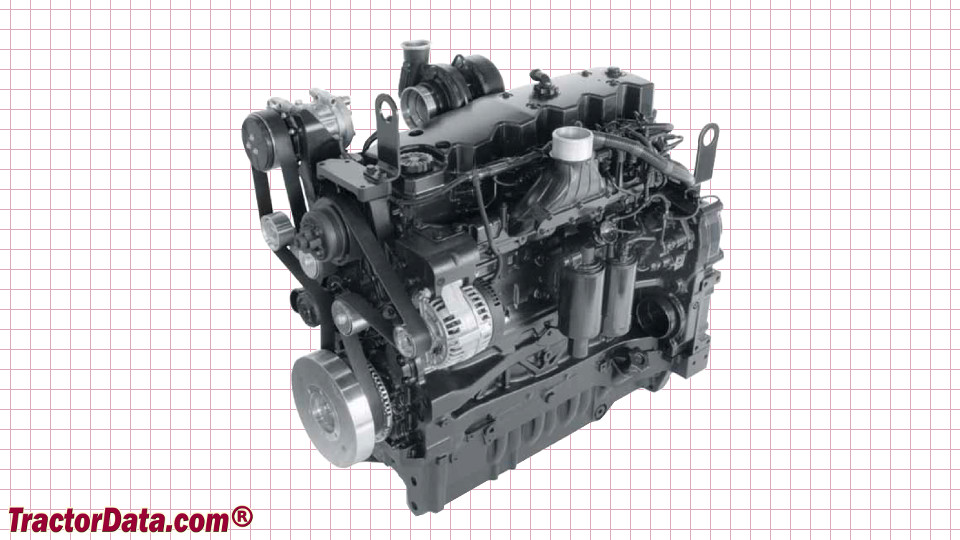

CaseIH Puma 210 - engine

CaseIH Puma 210 tractor photo
2007 - 2010   Puma Series
Row-Crop tractor
Next model:CaseIH Puma 215
Series next:CaseIH Puma 225
Series back:CaseIH Puma 195
more CaseIH Puma 210 specifications...






Engine Detail:

 CNH
 intercooled turbocharged diesel
 6-cylinder 24-valve
 liquid-cooled
 411 ci [6.7 L]
Bore/Stroke:4.094x5.197 inches [104 x 132 mm]
Emissions:Tier 3
Power:210 hp [156.6 kW]
Fuel system:electronic high-pressure common rail
Cooling system:viscous fan
Air cleaner:dual paper elements with aspirator
Compression:16.5:1
Rated RPM:2200
Starter volts:12
Oil capacity:16 qts [15.1 L]
