CaseIH Puma 165 Transmission


CaseIH Puma 165 tractor photo
2007 - 2010
Puma Series
Row-Crop tractor
Series map:
Puma 165
Puma 180
165.0hp
180.0hp
Transmissions overview
17-speed full power shift
18-speed full power shift
19-speed full power shift
continuously variable transmission (CVT)
Transmission
Typefull power shift
Gears17 forward and 6 reverse
The 17-speed powershift transmission was standard on 2WD models.
Transmission
Typefull power shift
Gears18 forward and 6 reverse
On 4WD models the 18-speed transmission was standard equipment.
Speeds

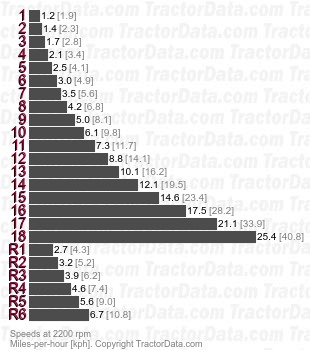

Puma 165  full power shift speeds
Transmission
TransmissionEconoGear
Typefull power shift
Gears19 forward and 6 reverse
The 19-speed EconoGear transmission provides a transport gear that operates at reduced RPM.
Speeds
19th gear at 1700 RPM.
Puma 165 EconoGear full power shift speeds
Transmission
Typecontinuously variable transmission (CVT)
Gearsinfinite forward and reverse
CVT first available on the Puma 165 starting in late 2008
Speeds

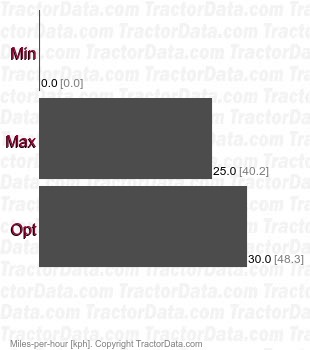

Puma 165  continuously variable transmission (CVT) speeds
